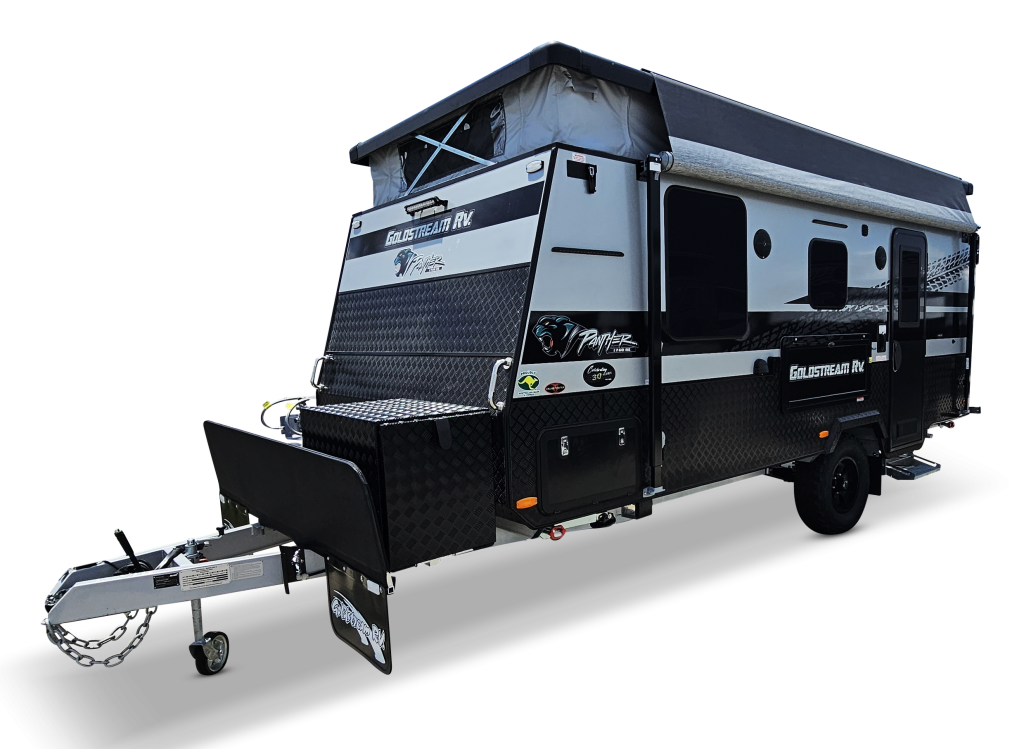

1760 - 1860 Series

The Goldstream RV range of 1760 – 1860 Pop Tops has been developed from years of customer involvement. We offer a number of layouts with different variations and combinations of our most popular models.

We have now introduced new packages to the range which will only enhance your caravanning experience.

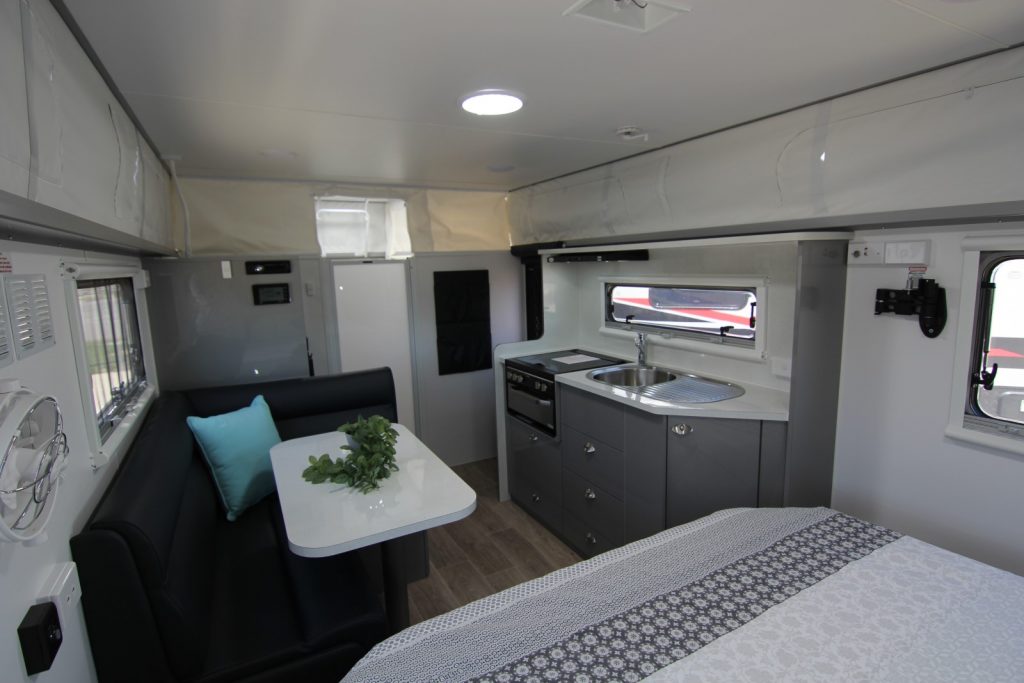

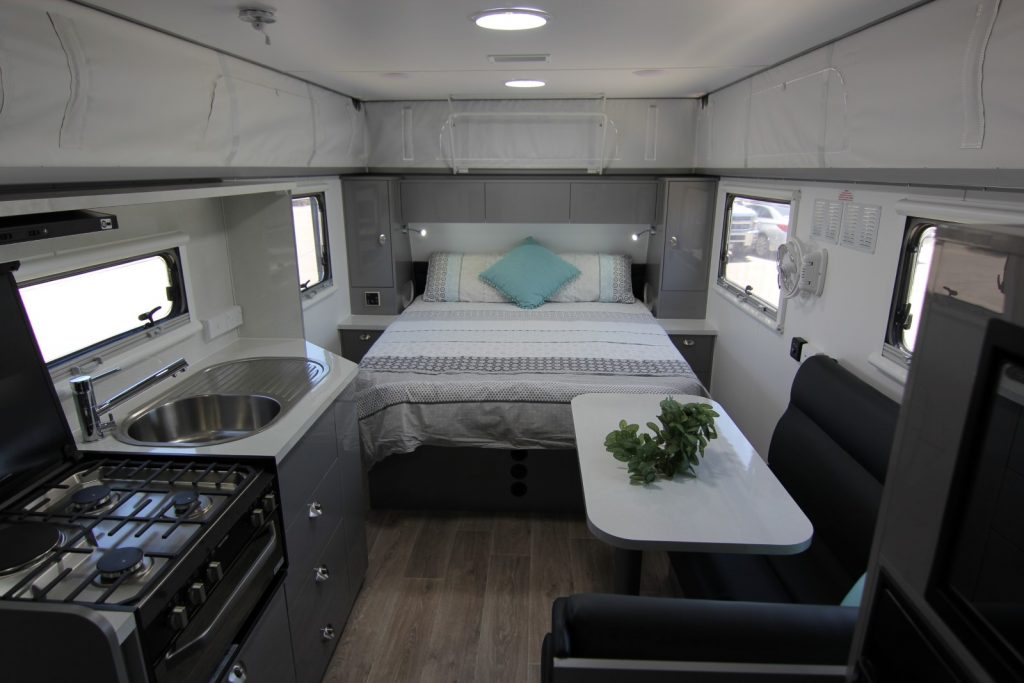

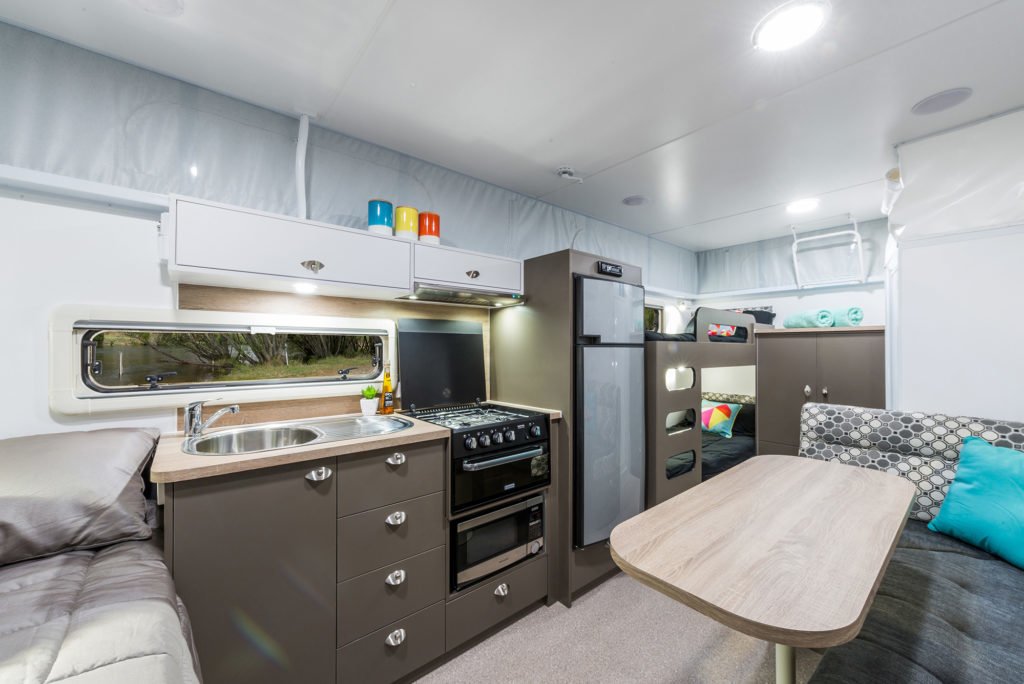

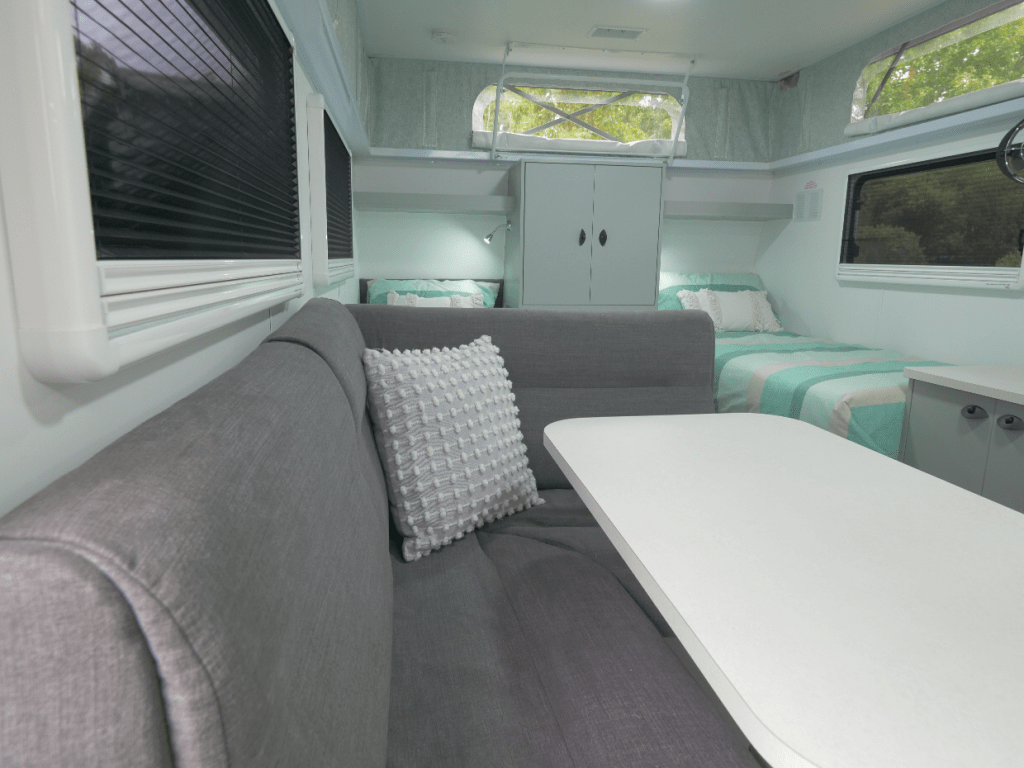

Internal Standard Features

The Goldstream RV 1760-1860 Series comes with a range of internal standard features you’ll love. These interior features include:

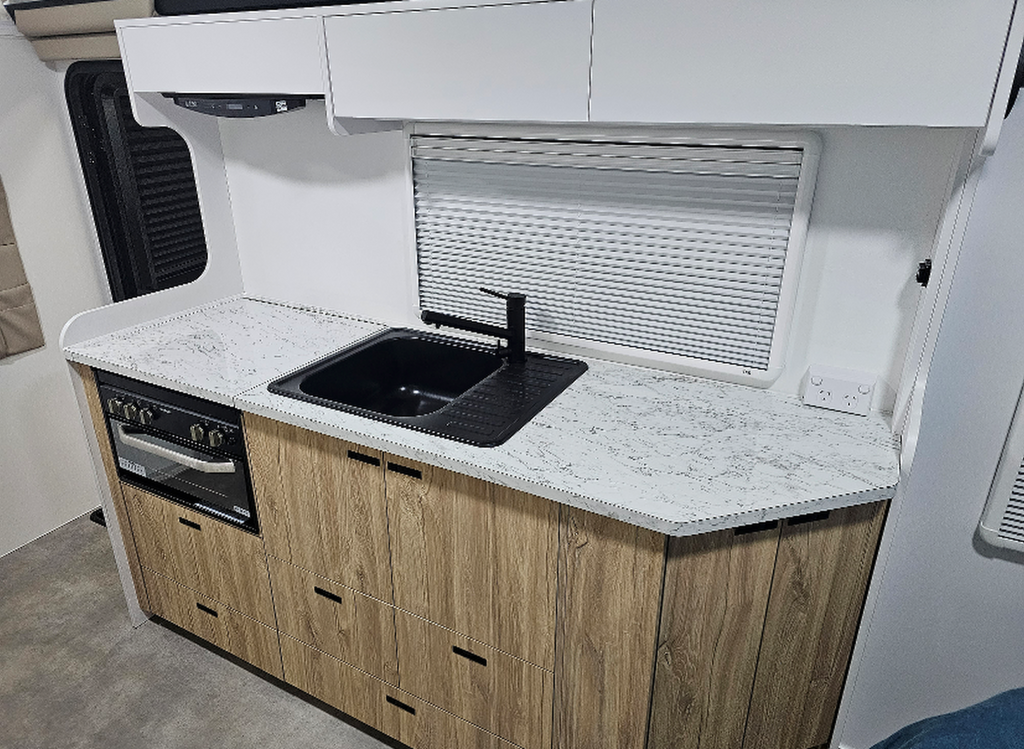

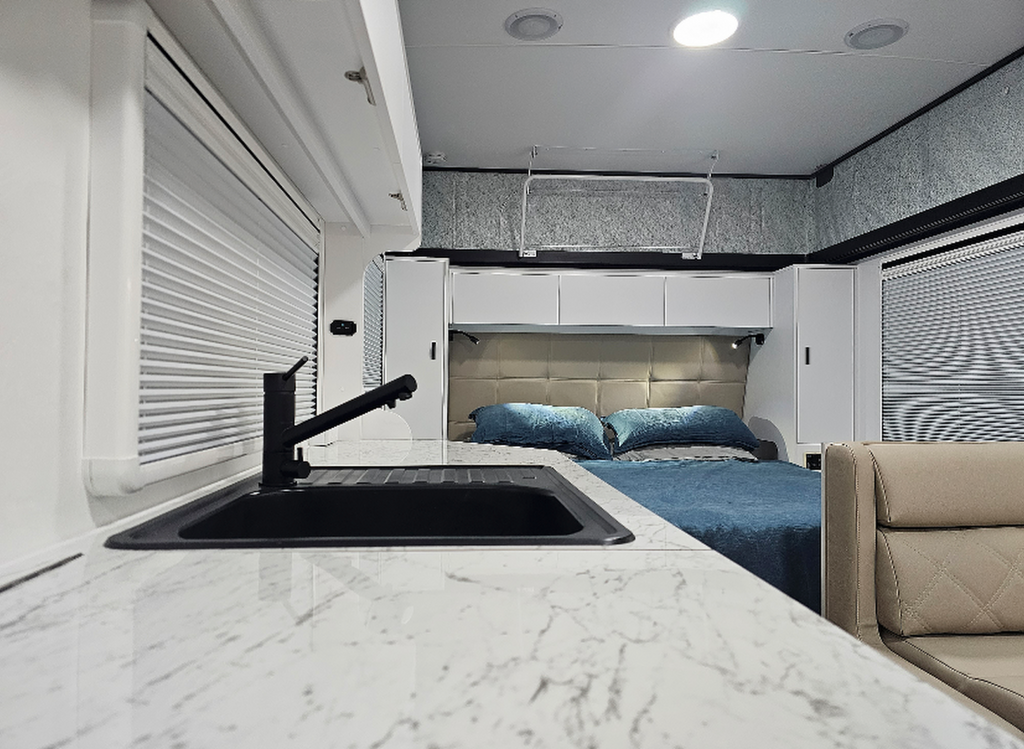

188 ltr 2 door fridge, 4-Burner Hotplate with Grill, Flick Mixer Tap, Microwave, Queen & Single Bed Options, Mains Pressure & Pump to Sink, Range Hood with Exhaust Fan, TV Coaxial Point, Innerspring Mattress, LED Lighting.

External Standard Features

You can enjoy a wide range of external features standard with the Goldstream RV 1760-1860 Series. These external features include:

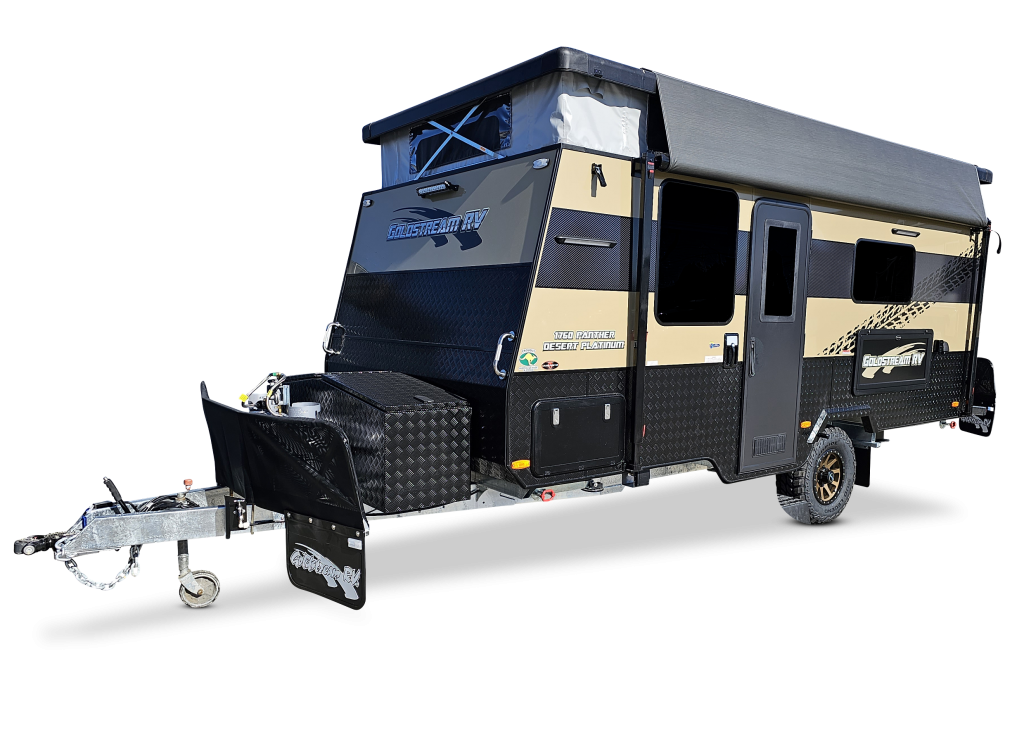

Composite Aluminum Panels over a Meranti frame , Aluminum Roof, Checker Plate Front, Triple Lock Door, Double glazed windows with block out blinds, Battery Pack with Charger, Bumper Bar with Spare Wheel, 15” Wheels & Tyres, ‘Skippy Lift’ Easy Roof Lifters & Struts, Front Boot or Tunnel Boot.

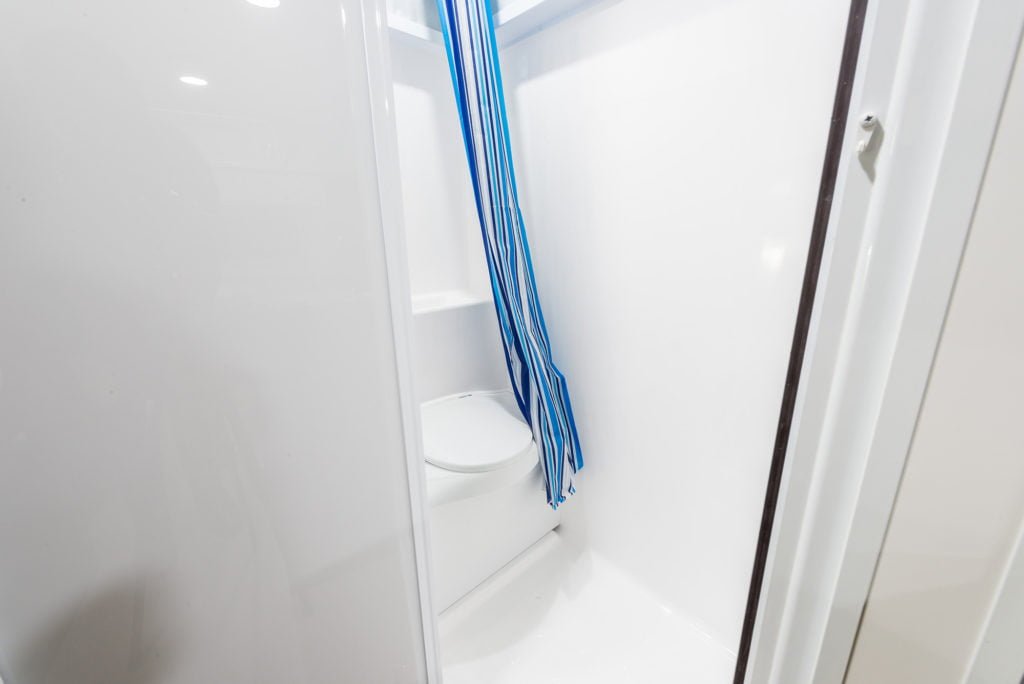

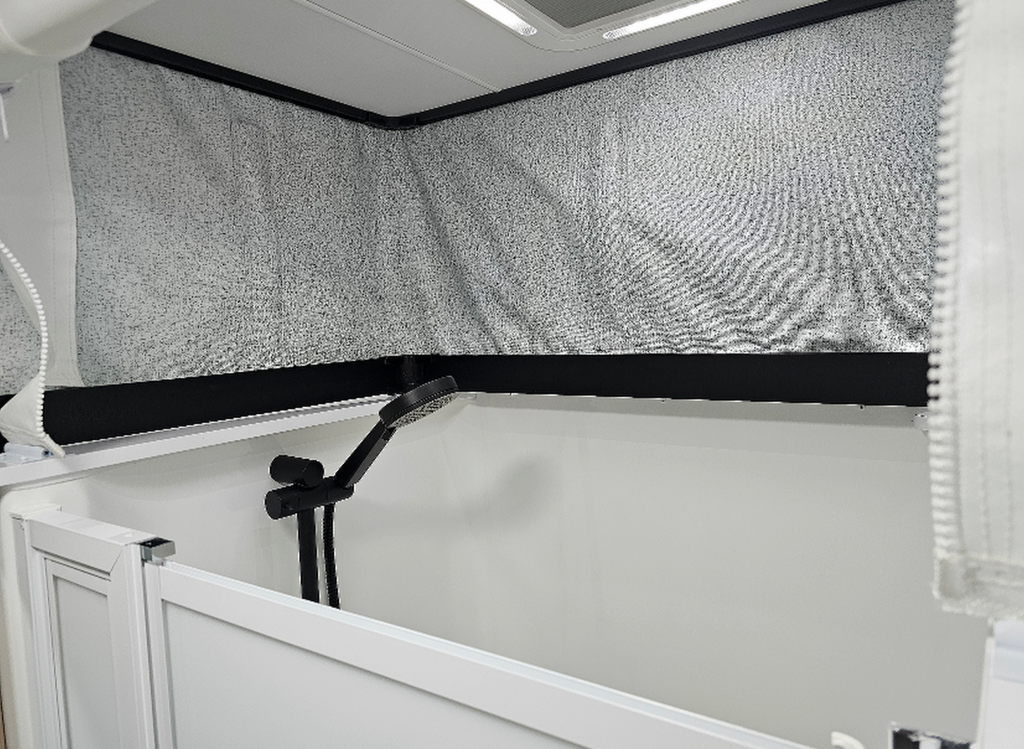

Shower Toilet Model Standard Features

Same Internal/External Features and Including:

Shower and Toilet Combo, Gas Hot Water System, 2 × 80L Water Tanks, Separate Tank Fillers, 2 × 9kg Gas Cylinders, Toilet with Pull-Out Cassette for Easy Use, Fully Plumbed with 1 Common Outlet for Waste.

Upgrade Packages

Adventure

The Adventure Pack has a host of standard inclusions to make every journey enjoyable. Some of the great features are list below.

  • Coil independent suspension upgrade to the ALKO range

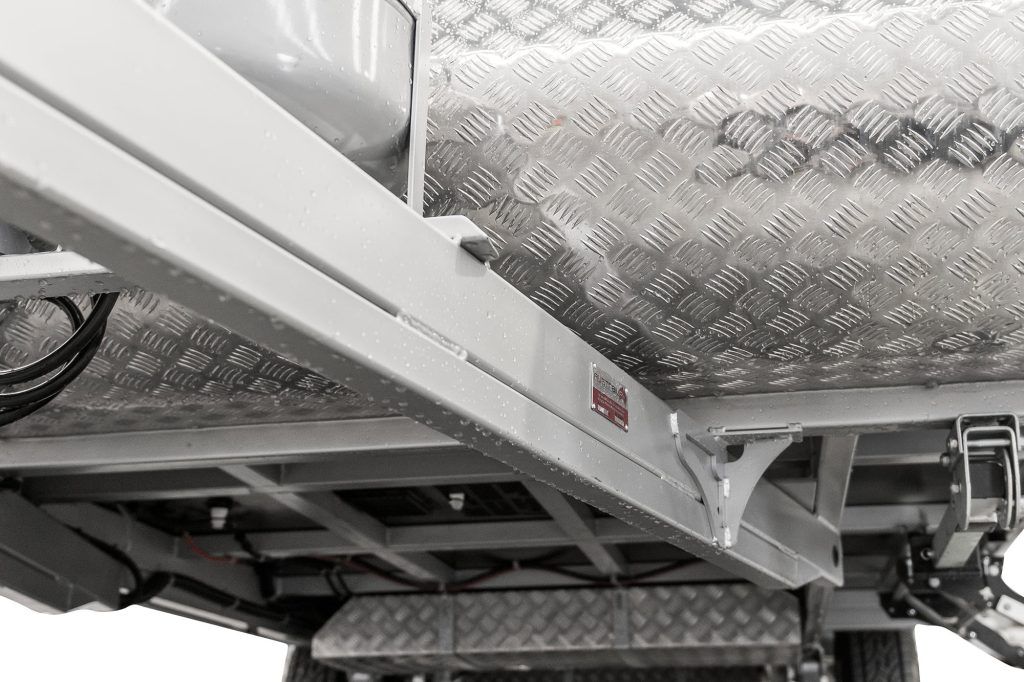

  • 150mm x 50mm Chassis
  • Wheel & tyre upgrades
  • 1 x 220-watt Solar panel
  • Wind up TV antenna
  • Bluetooth Radio
  • External 12volt Point
  • BMPRO 35 HA + DC-DC Charger Battery Management System with Trek monitor
  • 1 x 110amp hour Lithium Battery – IP67 Rating
  • Water Tank Gauges
  • Roll out Awning
  • Reverse Cycle Air Conditioning (1760/1800/1860 models)
  • New Profile Roof

Panther

The ultimate in Off-road enjoyment with  all the Adventure inclusions plus these further upgrades and extras:

  • Cruisemaster Coil Independent Suspension
  • D035 Off-road hitch
  • 16″ Alloy wheels to all models
  • Reverse Cycle Air Conditioning on all models
  • 2 x Enclosed Jerry Can Holders
  • Change over Gas Regulator
  • Gas Bayonet Point
  • External Picnic Table
  • Choice Checker plate colours
  • Choice of Composite Aluminium body colours
  • Stone Guard Protector with Mudflaps
  • Water Filter Tap
  • BMPRO 35 HA Battery Management System including DC-DC Charger
  • 1 x 200amp hour Lithium battery with IP67 rating (with option to upgrade to 300amp in same sized box- see your Dealer)
  • 2 x 220 watt Solar Panels
  • 24” Smart TV mounted on lockable swing arm
  • 3 in 1 USB/12v/TV point
  • New Profile Roof

Platinum

Available as an add on to the Adventure and Panther Packs, the Platinum Upgrade includes:

  • Raised Checkerplate
  • Checkerplate Wheel Spats
  • Upgraded Platinum Decals
  • Black Alloy Wheels
  • MT Tyres
  • Upgraded Taillights
  • Annexe Bug Light

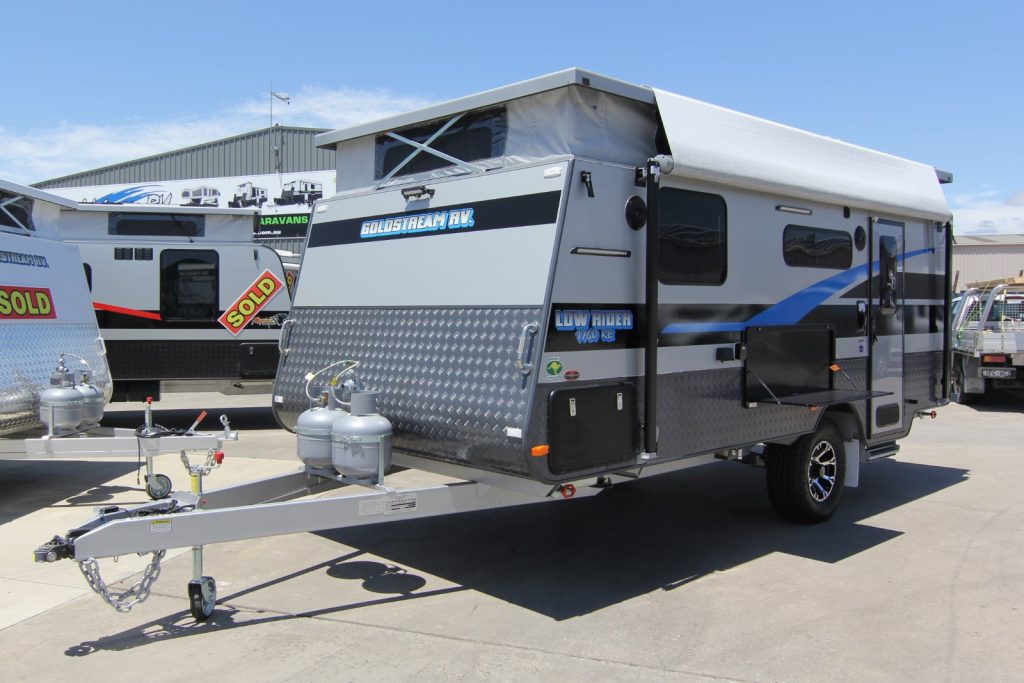

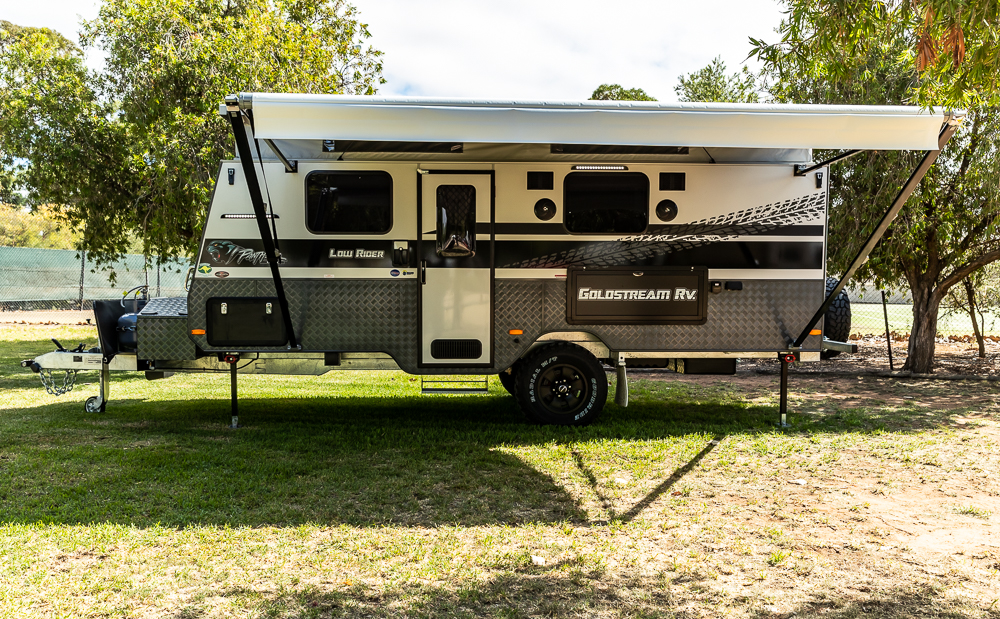

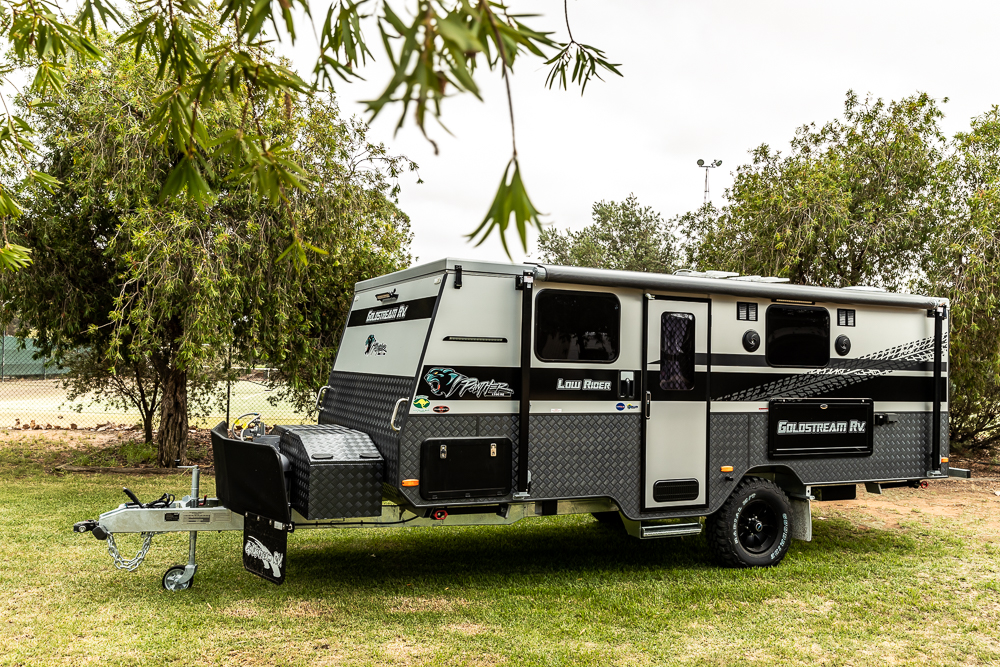

LOW RIDER 1760 RE OPTION

If you are looking for a Pop top with lower travel and storage height without moving into the camper market, the “Low Rider” option is one you should investigate. Available exclusively on our 1760 RE model the “Low Rider” has the same internal layout but with a few minor alterations that can make a big difference when not traveling and can allow many more to store their van at home, saving on paying for offsite caravan storage. Additionally, the lower height means less wind drag behind your tow vehicle and added access to those remote, tight camping spots.

The “Low Rider” has a reduced wall height and lower roof overall. Internally, we have removed some of the overhead cupboards to the sides to reduce visual bulk at eye level and maintain functionality and reduced the fridge size to a still generous 164lt allowing a microwave oven to be fitted above. The “Low Rider” option is available in our Adventure, Off-road and Panther Packages.

Floor Plans

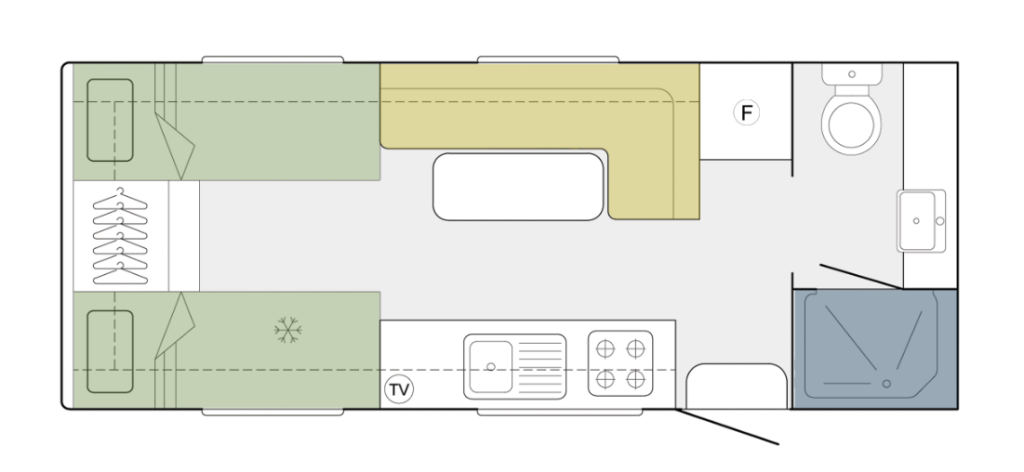

1860 REAR BUNK Layout

1860 Rear Bunk

TRAVEL LENGTH8270mm
BODY LENGTH5720mm
WIDTH (add +150mm for Awning)2280mm
HEIGHT (Approx Range From)2350mm
TARE (Approx Range From)2100kg
BALL (Approx Range From)150kg
ATM (Approx Range From)3200kg

Heights will vary depending on model and package due to the number of different suspensions and options available and above should be used as a guide only. Please check with your selling dealer to explain further and for more information on suspension and heights.

1860 REAR ENSUITE Layout

1860 Rear Ensuite

TRAVEL LENGTH8270mm
BODY LENGTH5720mm
WIDTH (add +150mm for Awning)2280mm
HEIGHT (Approx Range From)2350mm
TARE (Approx Range From)2100kg
BALL (Approx Range From)150kg
ATM (Approx Range From)3200kg

Heights will vary depending on model and package due to the number of different suspensions and options available and above should be used as a guide only. Please check with your selling dealer to explain further and for more information on suspension and heights.

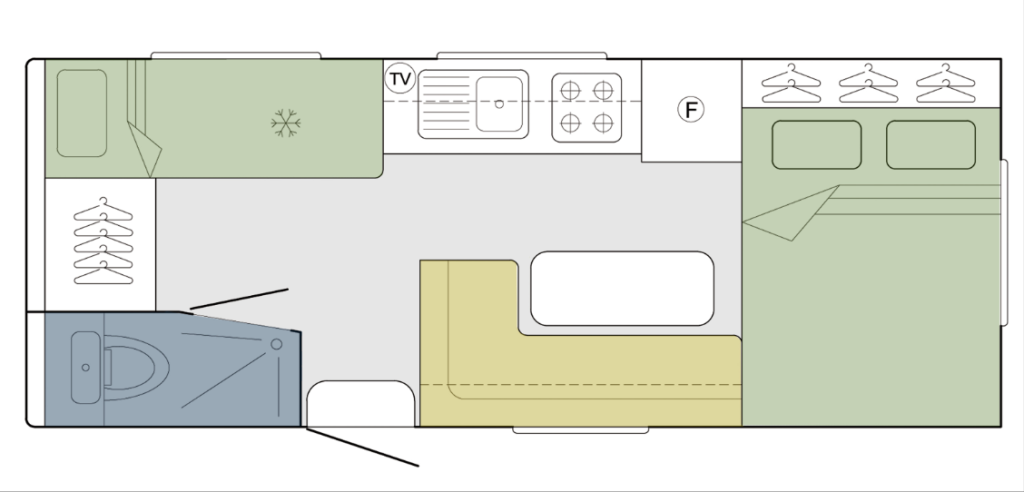

1860 SHOWER TOILET Layout

1860 Shower Toilet

TRAVEL LENGTH8270mm
BODY LENGTH5720mm
WIDTH (add +150mm for Awning)2280mm
HEIGHT (Approx Range From)2350mm
TARE (Approx Range From)2100kg
BALL (Approx Range From)150kg
ATM (Approx Range From)3200kg

Heights will vary depending on model and package due to the number of different suspensions and options available and above should be used as a guide only. Please check with your selling dealer to explain further and for more information on suspension and heights.

1800 BUNK EWB SHOWER TOILET Layout

1800 Bunk Shower Toilet

TRAVEL LENGTH7720mm
BODY LENGTH5520mm
WIDTH (add +150mm for Awning)2280mm
HEIGHT (Approx Range From)2350mm
TARE (Approx Range From)1825kg
BALL (Approx Range From)175kg
ATM (Approx Range From)2500kg

Heights will vary depending on model and package due to the number of different suspensions and options available and above should be used as a guide only. Please check with your selling dealer to explain further and for more information on suspension and heights.

1760 REAR ENSUITE Layout

1760 Rear Ensuite

TRAVEL LENGTH7550mm
BODY LENGTH5400mm
WIDTH (add +150mm for Awning)2280mm
HEIGHT (Approx Range From)2350mm
TARE (Approx Range From)1900kg
BALL (Approx Range From)180kg
ATM (Approx Range From)2500kg

Heights will vary depending on model and package due to the number of different suspensions and options available and above should be used as a guide only. Please check with your selling dealer to explain further and for more information on suspension and heights.

1760 RDE Layout

1760 RDE

TRAVEL LENGTH7550mm
BODY LENGTH5400mm
WIDTH (add +150mm for Awning)2280mm
HEIGHT (Approx Range From)2350mm
TARE (Approx Range From)1900kg
BALL (Approx Range From)180kg
ATM (Approx Range From)2500kg

Heights will vary depending on model and package due to the number of different suspensions and options available and above should be used as a guide only. Please check with your selling dealer to explain further and for more information on suspension and heights.

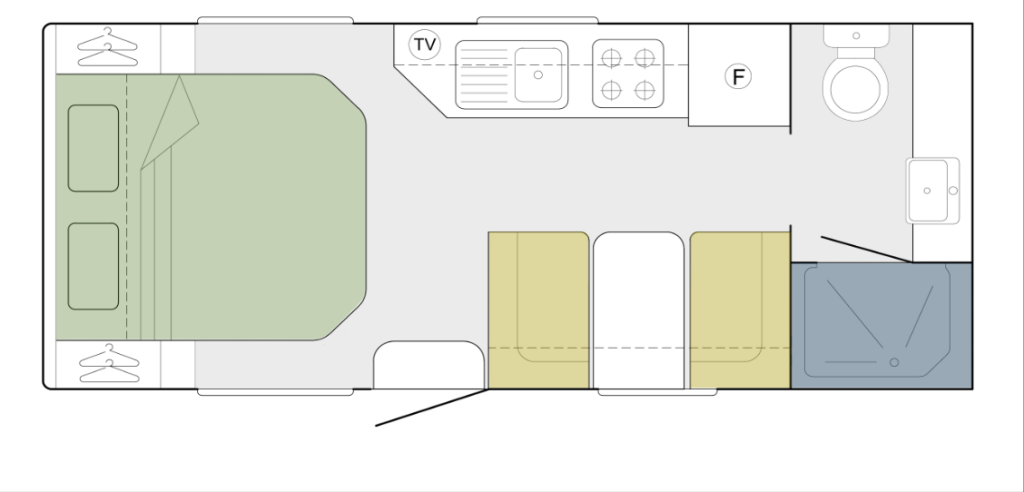

1760 FRONT CAFE Layout

1760 Front Cafe

TRAVEL LENGTH7550mm
BODY LENGTH5400mm
WIDTH (add +150mm for Awning)2280mm
HEIGHT (Approx Range From)2350mm
TARE (Approx Range From)1900kg
BALL (Approx Range From)180kg
ATM (Approx Range From)2500kg

Heights will vary depending on model and package due to the number of different suspensions and options available and above should be used as a guide only. Please check with your selling dealer to explain further and for more information on suspension and heights.

1760 FRONT KITCHEN SHOWER TOILET Layout

1760 Front Kitchen Shower Toilet

TRAVEL LENGTH7550mm
BODY LENGTH5400mm
WIDTH (add +150mm for Awning)2280mm
HEIGHT (Approx Range From)2350mm
TARE (Approx Range From)1900kg
BALL (Approx Range From)180kg
ATM (Approx Range From)2500kg

Heights will vary depending on model and package due to the number of different suspensions and options available and above should be used as a guide only. Please check with your selling dealer to explain further and for more information on suspension and heights.

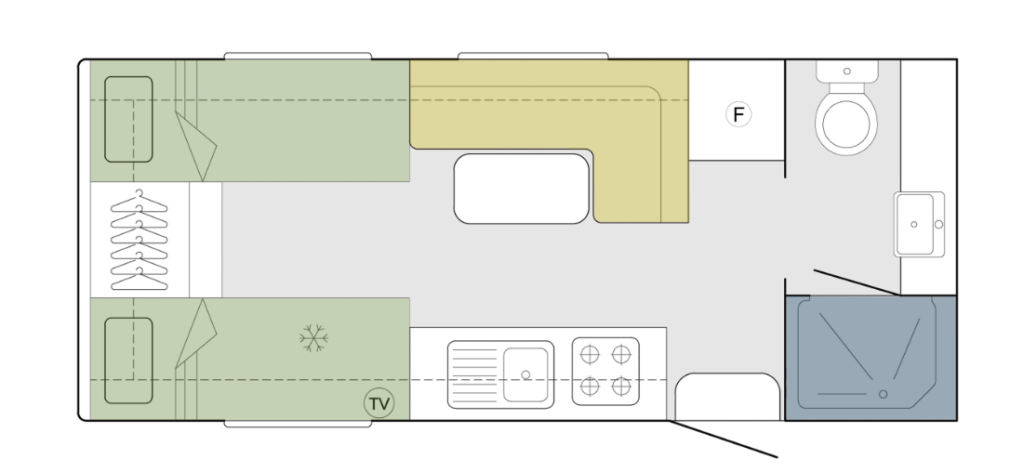

1760 EW REAR BUNK Layout

1760 Rear Bunk

TRAVEL LENGTH7550mm
BODY LENGTH5400mm
WIDTH (add +150mm for Awning)2280mm
HEIGHT (Approx Range From)2350mm
TARE (Approx Range From)1900kg
BALL (Approx Range From)180kg
ATM (Approx Range From)2500kg

Heights will vary depending on model and package due to the number of different suspensions and options available and above should be used as a guide only. Please check with your selling dealer to explain further and for more information on suspension and heights.
